NxtWall Door Types and Specifications

Jump to: Door Types

NxtWall Door Specifications:

NxtWall Door Types:

  • Frameless Glass
  • Aluminum Frame with Full Lite
  • Solid Core Wood
  • Solid Core with Full Lite
  • Solid Core with Half Lite
  • Solid Core with Quarter Lite



NxtWall Door Finishes:

  • MS Silver Powdercoat (aluminum frame standard)
  • Custom Powdercoat
  • Clear Anodized
  • Architectural Grade Wood Veneers
  • Wilson Art Laminates

View all NxtWall Door Finishes



Standard Door Width:

  • Sliding Door = 42″ Width
  • Swing Door = 35-3/4″ Width
  • Rough Opening = 38″ Width

NOTE: Custom Widths Available by Request

Maximum Door Height:

NOTE: Any Height Sliding or Swing up to Maximum (Flex Series)
NOTE: Full Height Sliding or Swing Only (View Series)

Glazing Options:

  • 3/8″ Thick Standard Frameless Glass Door
  • 1/4″ Thick Glass Inserts (Single or Double Pane)
  • 3/8″ Thick Glass Inserts (Single Pane Only)
  • Clear Tempered
  • 1/2″ Thick Glass Inserts (View Series Only, above 9ft ceiling height)

NxtWall Door Thickness:

  • 3/8″ (frameless glass)
  • 1-3/4″ (all others)

Door Hardware:

  • Non-Locking Ladder Pulls: 15-3/4″, 24″, 36″, 48″, and 60″ (standards)
  • Locking Ladder Pulls: 48″ and 60″
  • Locking Leverset (swing doors)
  • Numerous Other Hardware Available

Door Hardware Finishes:

  • Brushed Stainless Steel (standard)
  • Black Matte

Door Hinges:

  • NxtWall Hinges (1-3/4″ Thick Doors Only)
  • Flexa 8810 (Frameless Glass Doors Only)
  • Biloba Hydraulic Self Closing (Frameless Glass Doors Only)
  • Numerous Other Hardware Available

Door Options:

  • Options for Security, Privacy, and Accessibility
  • Single or Double Door Options
  • Soft Open and Close Options

NxtWall Door Types:

Jump to: Door Specifications

Sliding Doors:

Frameless Glass Sliding Door

(Available in both Flex Series and View Series)

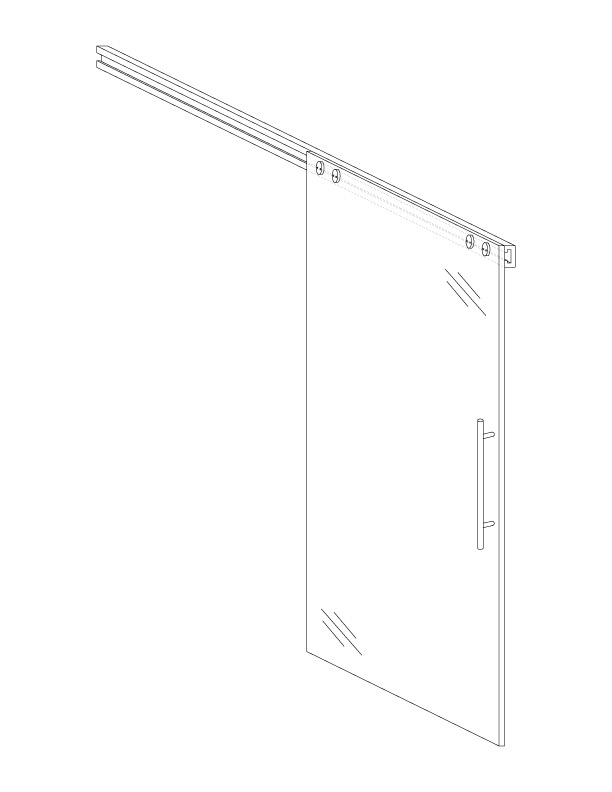

NxtWall Frameless Glass Sliding Door
Frameless glass sliding door with soft/open close mechanism

View Series Frameless Glass Sliding Door

(Available in View Series Only)

NxtWall View Series frameless glass sliding door
NxtWall View Series frameless glass sliding door

Aluminum Frame Full Lite Sliding Door

(Available in Flex Series Only)

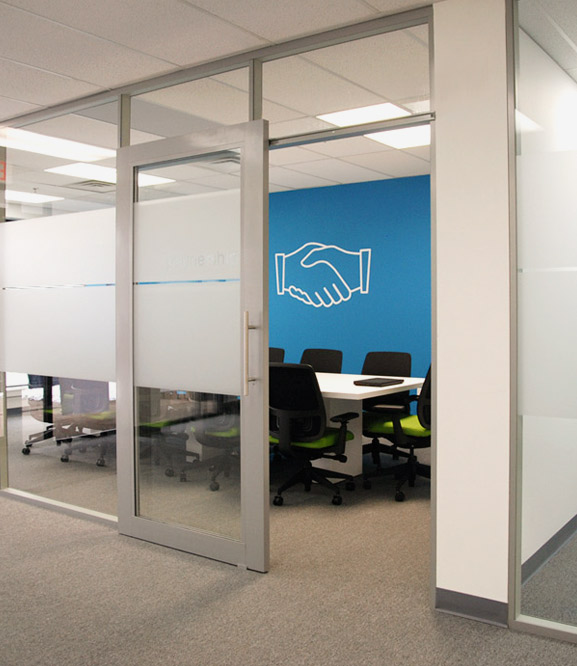

NxtWall Aluminum Frame Full Lite Sliding Door
NxtWall aluminum frame full lite glass sliding door

Solid Core Wood Sliding Door

(Available in Flex Series Only)

NxtWall solid core wood sliding door
NxtWall flush solid core wood sliding door

Solid Core Wood Full Lite Sliding Door

(Available in Flex Series Only)

NxtWall Solid Core with Full Lite Sliding Door
NxtWall solid core wood full lite sliding door

Solid Core Wood Half Lite Sliding Door

(Available in Flex Series Only)

NxtWall Solid Core with Half Lite Sliding Door

Not
Available.

Solid Core Wood Quarter Lite Sliding Door

(Available in Flex Series Only)

NxtWall Solid Core with Quarter Lite Sliding Door

Not
Available.

Swing Doors:

Frameless Glass Swing Door

(Available in both Flex Series and View Series)

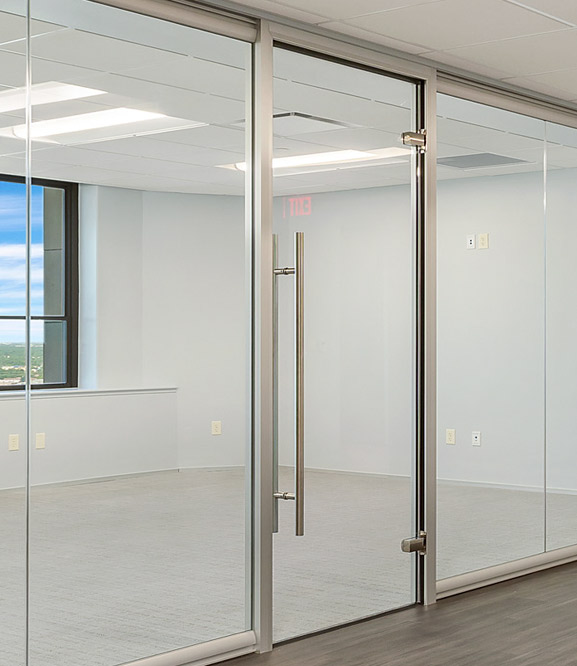

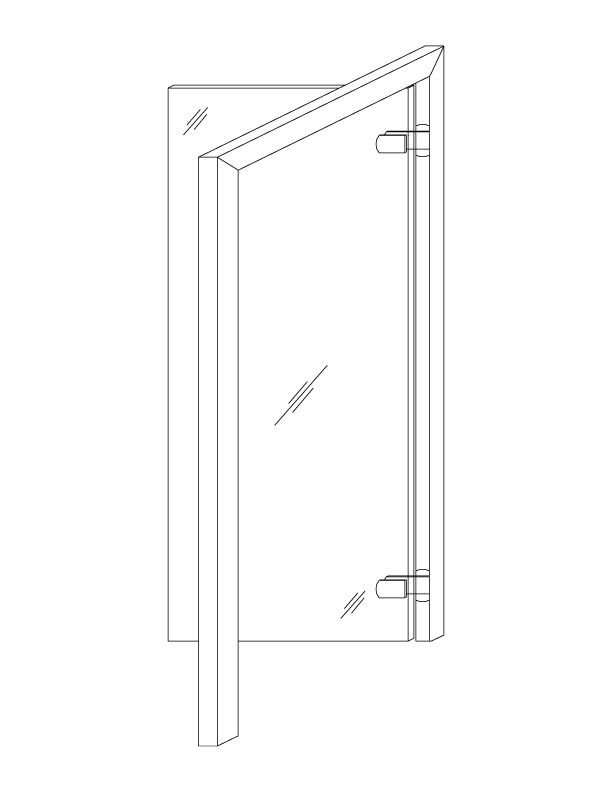

NxtWall frameless glass swing door
NxtWall frameless glass swing door

Aluminum Frame Full Lite Swing Door

(Available in both Flex Series and View Series)

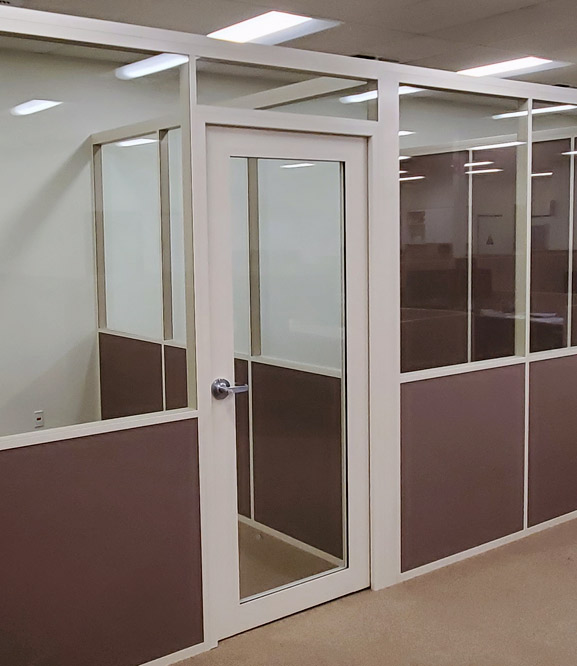

NxtWall aluminum frame with full lite swing door
NxtWall aluminum frame full lite glass swing door

Solid Core Wood Swing Door

(Available in both Flex Series and View Series)

NxtWall solid core wood swing door
NxtWall flush solid core wood swing door

Solid Core Wood Full Lite Swing Door

(Available in both Flex Series and View Series)

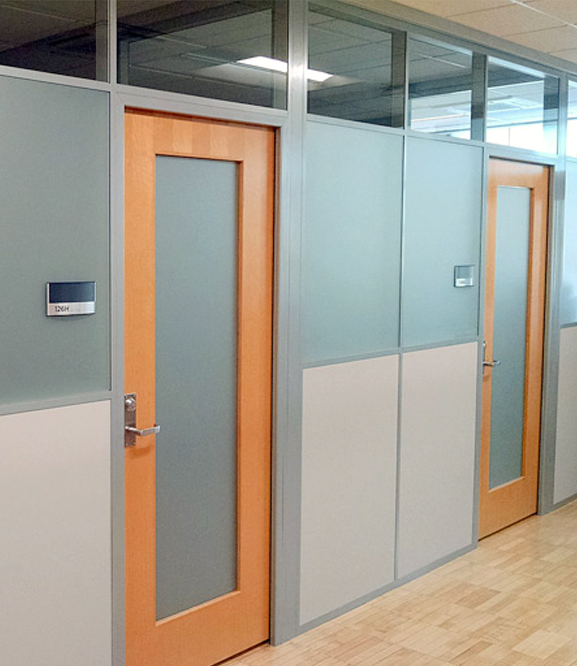

NxtWall solid core with full lite swing door
NxtWall solid core full lite glass swing door

Solid Core Wood Half Lite Swing Door

(Available in both Flex Series and View Series)

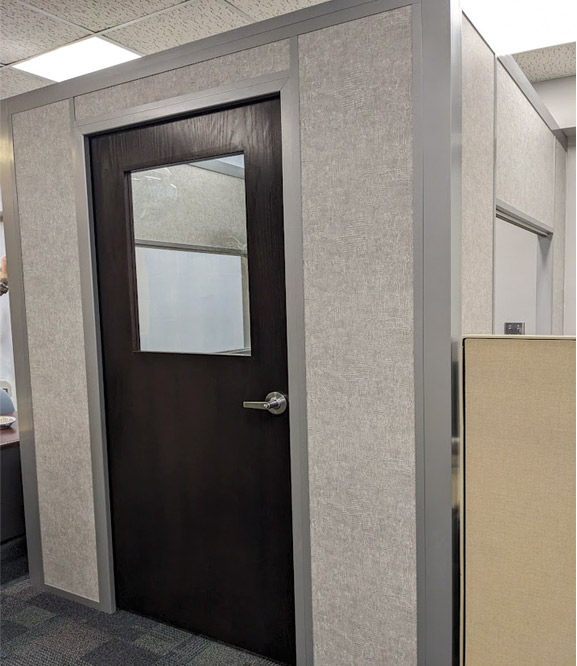

NxtWall solid core with half lite swing door
NxtWall solid core half lite glass swing door

Solid Core Wood Quarter Lite Swing Door

(Available in both Flex Series and View Series)

NxtWall solid core with quarter lite swing door
NxtWall solid core quarter lite glass swing door
